Material data

Dry-Pressing Sintered Ferrite Powder

High-performance motor arc segments, radially and multipole-oriented rings and tubes, and small, thin and complex-shaped magnets.

Emailxincailiao@higasket.com

Polymersyifu@higasket.com +86 19556295251

Magneticsyibo@higasket.com +86 13275794504

Request a quote Material finder

Samples and technical data on request.

OVERVIEW

High-performance dry-pressing anisotropic powder handles demanding forming: it can produce radially and multipole-oriented rings and tubes, and supports small, thin and complex-shaped magnets with excellent magnetic properties.

Dry-pressing isotropic powder is easy to process and cost-effective, meeting conventional magnetic performance requirements.

SPECIFICATIONS

Property	BMS-2.12	BMS-2.9H
Br (mT)	420 ± 10	380 ± 10
Hcb (kA/m)	310 ± 12	279 ± 12
Hcj (kA/m)	352 ± 12	394 ± 12
(BH)max (kJ/m³)	33.6 ± 1.6	28.6 ± 1.6
Shrinkage SHD (%)	14.0 ± 1.0	13.5 ± 1.0
Average particle size APD (μm)	0.83 ± 0.05	0.83 ± 0.05
Note	Contains La-Co	Contains La-Co

More grades are available on request.

APPLICATIONS

Category: Magnetic Powders

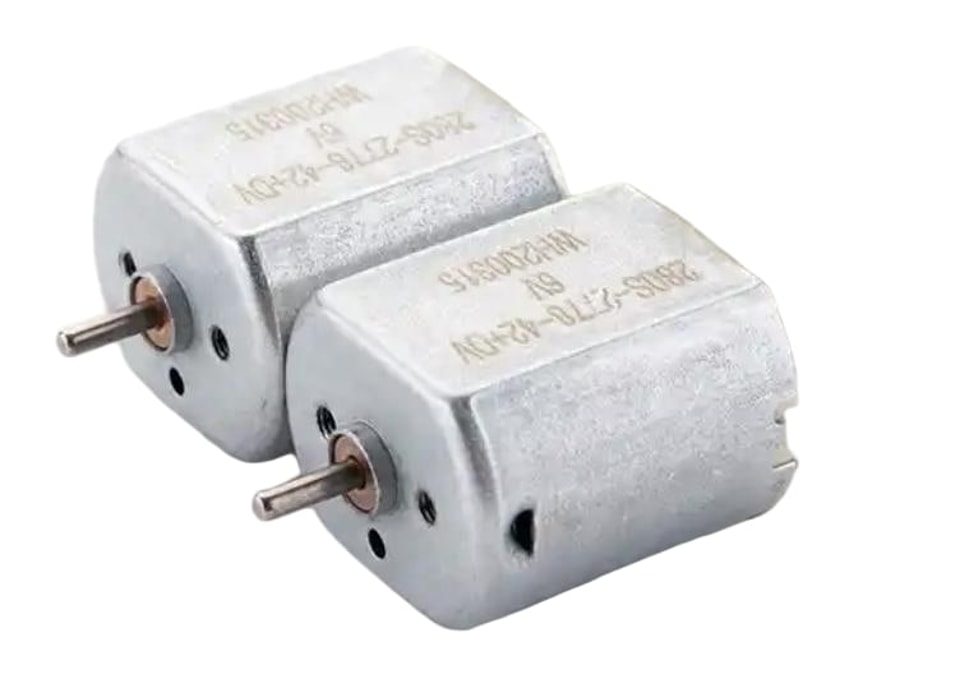

Applications: High-performance anisotropic powder: high-performance motor arc segments; radially and multipole-oriented rings and tubes; small, thin and complex-shaped magnets. Isotropic powder: general micro motors, advertising magnets, magnetic stationery and other products with lower performance requirements.
