Material data

Bonded Ferrite Powder

Automotive damping sheets, refrigerator door seal strips, advertising magnets, magnetic stationery, micro motor rings, rotors and strips.

Emailxincailiao@higasket.com

Polymersyifu@higasket.com +86 19556295251

Magneticsyibo@higasket.com +86 13275794504

Request a quote Material finder

Samples and technical data on request.

OVERVIEW

A broad range of bonded ferrite powders suited to different forming processes, including injection molding and calendering.

Isotropic bonded powder: good plasticity and flexible forming, suited to damping and sealing products
Injection-molding powder: high forming precision for precision magnets with complex structures
Calendering anisotropic bonded powder: good orientation, suited to high-volume production of thin magnetic strips

SPECIFICATIONS

Property	BMXF-4DB	BMXF-4D
Green compact Br (mT)	165 ± 5	165 ± 5
Green compact Hcb (kA/m)	115 ± 5	115 ± 5
Green compact Hcj (kA/m)	257 ± 16	263 ± 16
Green compact (BH)max (kJ/m³)	4.8 ± 0.4	4.8 ± 0.4
Molded part Br (mT)	270 ± 5	265 ± 5
Molded part Hcb (kA/m)	190 ± 5	190 ± 5
Molded part Hcj (kA/m)	251 ± 24	257 ± 24
Molded part (BH)max (kJ/m³)	13.5 ± 0.8	13.1 ± 0.8
Average particle size APD (μm)	1.10 – 1.40	1.10 – 1.40
Compressed density CD (g/cm³)	2.90 – 3.20	2.90 – 3.20
Forming process	Calendering	Calendering

More grades are available on request.

APPLICATIONS

Category: Magnetic Powders

Industries: Home appliances · Automotive

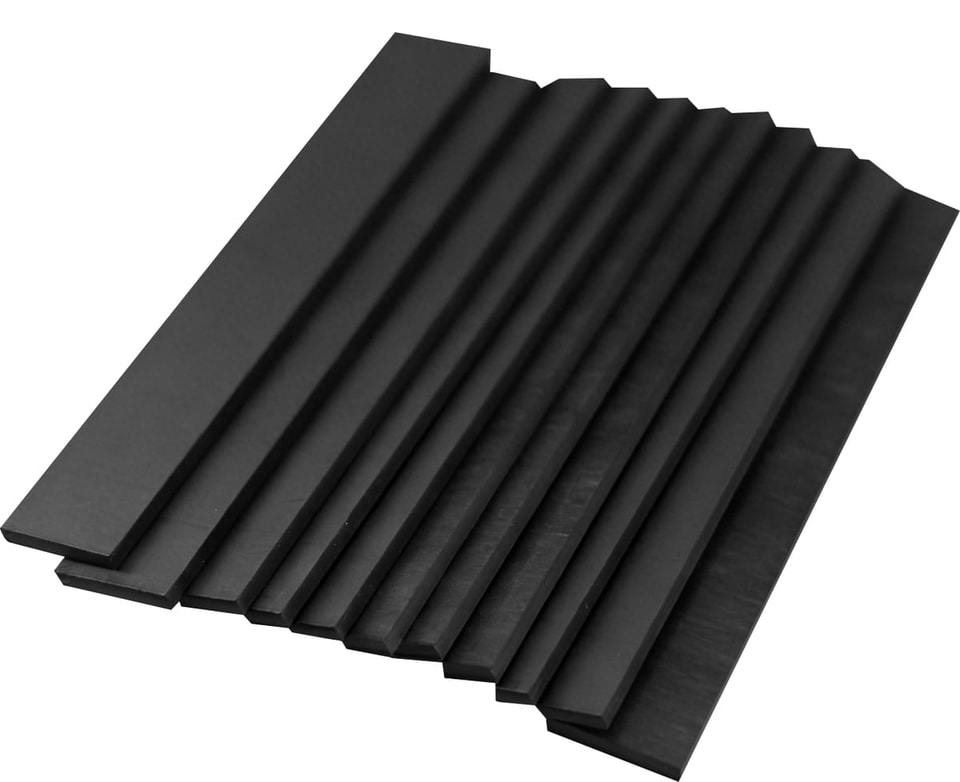

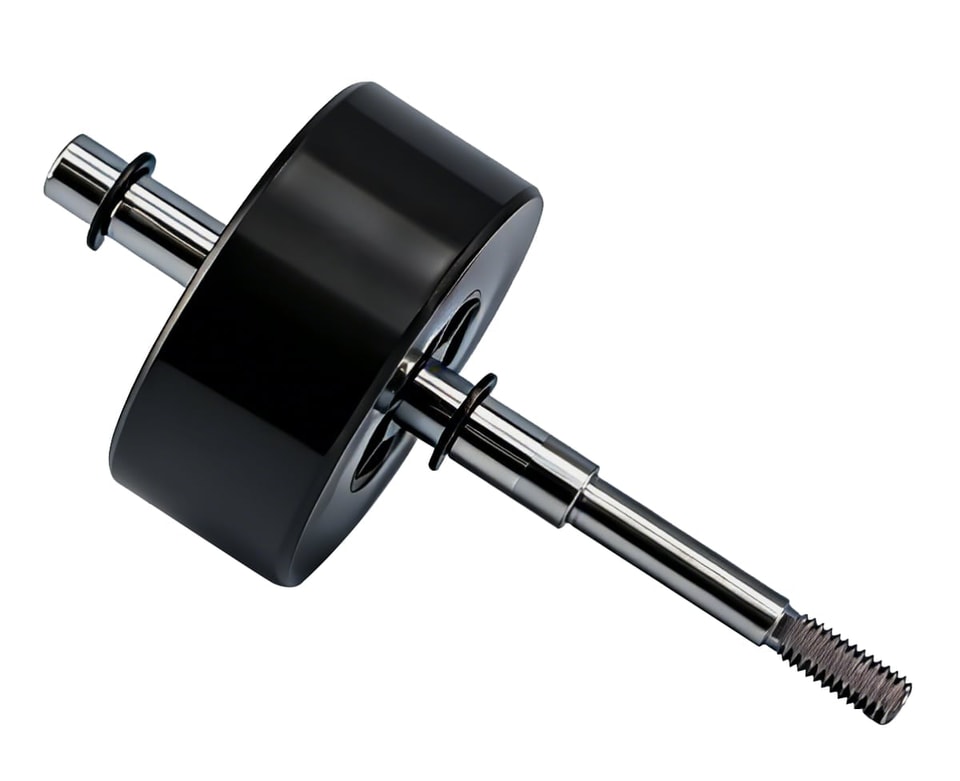

Applications: Isotropic bonded powder: automotive sound-damping sheets, refrigerator magnetic door seals, advertising magnets and magnetic stationery. Injection-molding powder: micro motor magnetic rings and rotors, copier and fax magnetic rollers. Calendering anisotropic powder: micro motor magnetic strips.
