Material data

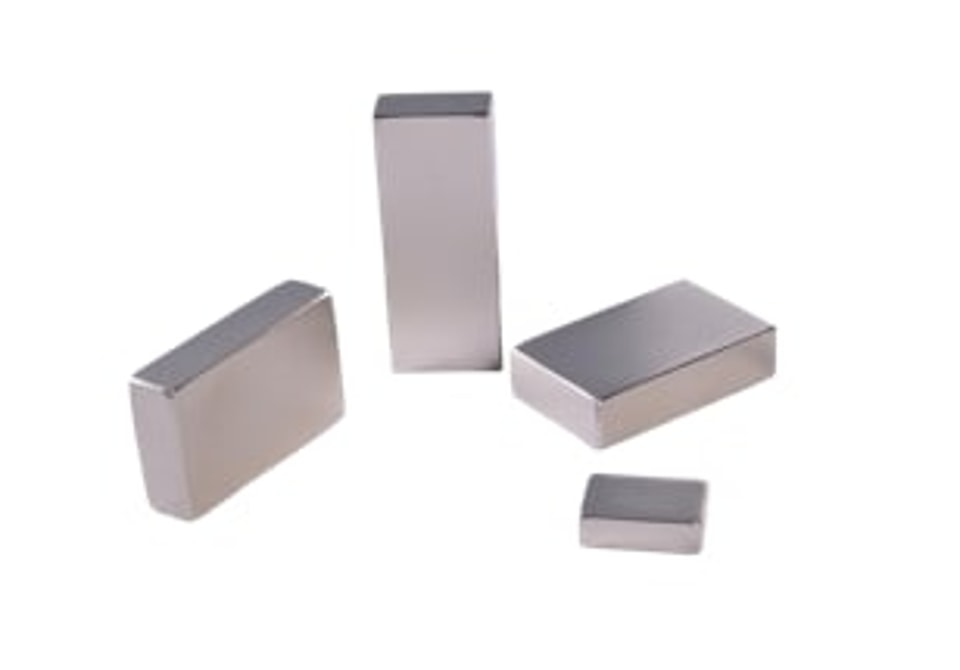

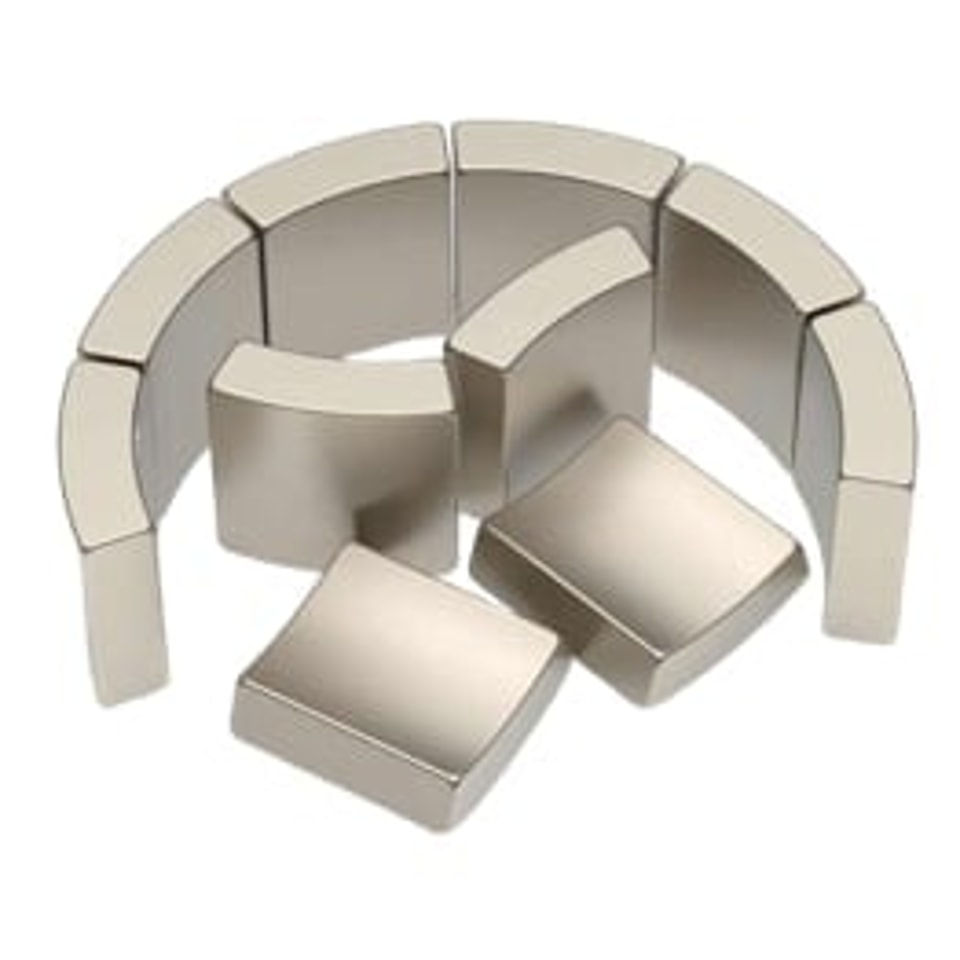

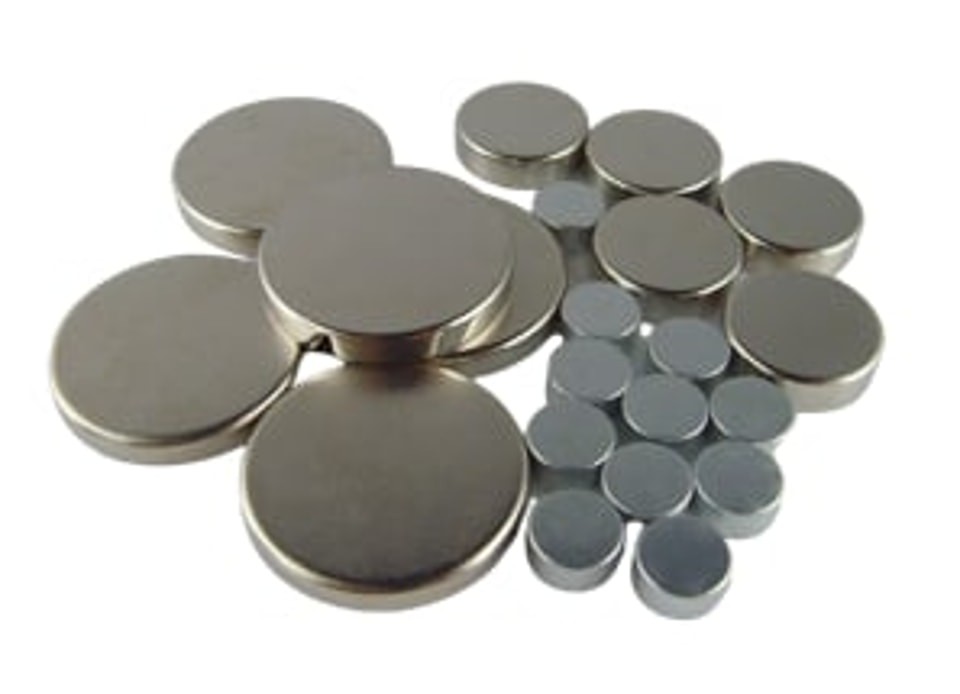

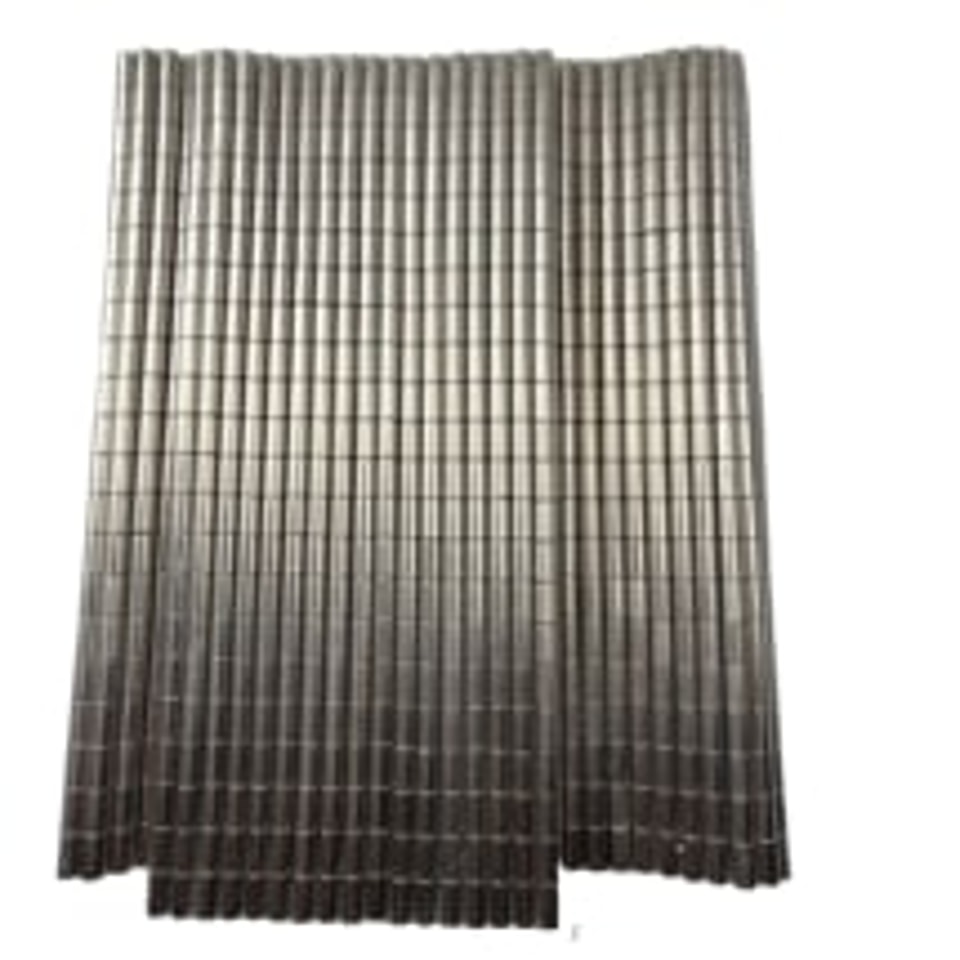

Sintered NdFeB Permanent Magnets

Information technology, intelligent manufacturing, wind power, rail transit, new energy vehicles, medical equipment and defense.

Emailxincailiao@higasket.com

Polymersyifu@higasket.com +86 19556295251

Magneticsyibo@higasket.com +86 13275794504

Request a quote Material finder

Samples and technical data on request.

OVERVIEW

Sintered NdFeB is the third generation of rare-earth permanent magnets, known as the “king of magnets” for its high coercivity, high energy product and excellent service performance.

We produce the full range of sintered NdFeB grades with the entire process under control, ensuring stable, consistent quality.

SPECIFICATIONS

Magnetic properties

Property	N35	N38	N40
Br (T)	1.18 – 1.24	1.23 – 1.29	1.26 – 1.32
Br (kGs)	11.8 – 12.4	12.3 – 12.9	12.6 – 13.2
Hcj (kA/m)	≥ 960	≥ 960	≥ 960
Hcj (kOe)	≥ 12	≥ 12	≥ 12
Hcb (kA/m)	≥ 860	≥ 860	≥ 860
Hcb (kOe)	≥ 10.8	≥ 10.8	≥ 10.8
(BH)max (kJ/m³)	263 – 287	287 – 310	302 – 326
(BH)max (MGOe)	33 – 36	36 – 39	38 – 41

Temperature coefficients (typical)

Temperature range (°C)	α(Br) (%/°C)	β(Hcj) (%/°C)
20 – 80	−0.090 to −0.124	−0.70 to −0.82

Grade system — the number is the maximum energy product (MGOe); the suffix is the intrinsic coercivity level

Series	Intrinsic coercivity	Grades
N	Low	N30 – N56
M	Medium	N30M – N56M
H	High	N30H – N56H
SH	Very high	N30SH – N56SH
UH	Ultra high	N28UH – N56UH
EH	Extremely high	N28EH – N50EH
AH	Highest in the range	N28AH – N45AH

More grades are available on request.

APPLICATIONS

Category: Sintered Magnets

Industries: Automotive

Applications: High-end, high-tech fields: next-generation information technology, intelligent manufacturing equipment, wind power, advanced rail transit, energy-saving and new energy vehicles, medical equipment and defense.
