Material data

Injection-Molding Magnetic Compounds

Injection-molded micro motor rings and rotors, copier and fax magnetic rollers, precision sensors, automotive electronics and small appliance parts.

Emailxincailiao@higasket.com

Polymersyifu@higasket.com +86 19556295251

Magneticsyibo@higasket.com +86 13275794504

Request a quote Material finder

Samples and technical data on request.

OVERVIEW

Ferrite or rare-earth permanent magnet powder is compounded with thermoplastic resins such as nylon and PPS, coupling agents and lubricants, then intensively mixed, screw-compounded, extruded and pelletized.

The compounds offer good magnetic properties, high mechanical strength, good injection flow and excellent processability — ideal for integrally molding complex precision magnetic components.

SPECIFICATIONS

Property	SC-2.3	SC-2.2
Br (mT)	310 ± 5	300 ± 5
Hcb (kA/m)	201 ± 10	195 ± 10
Hcj (kA/m)	220 ± 20	220 ± 20
(BH)max (kJ/m³)	18.3 ± 0.5	17.5 ± 0.5
Tensile strength (MPa)	60	70
Flexural strength (MPa)	120	150
Impact strength (kJ/m²)	8	10
MFR (g/10 min)	65	80
Density ρ (g/cm³)	3.85	3.8
Composition	SrM + PA6	SrM + PA6

More grades are available on request.

APPLICATIONS

Category: Magnetic Granules

Industries: Home appliances · Automotive

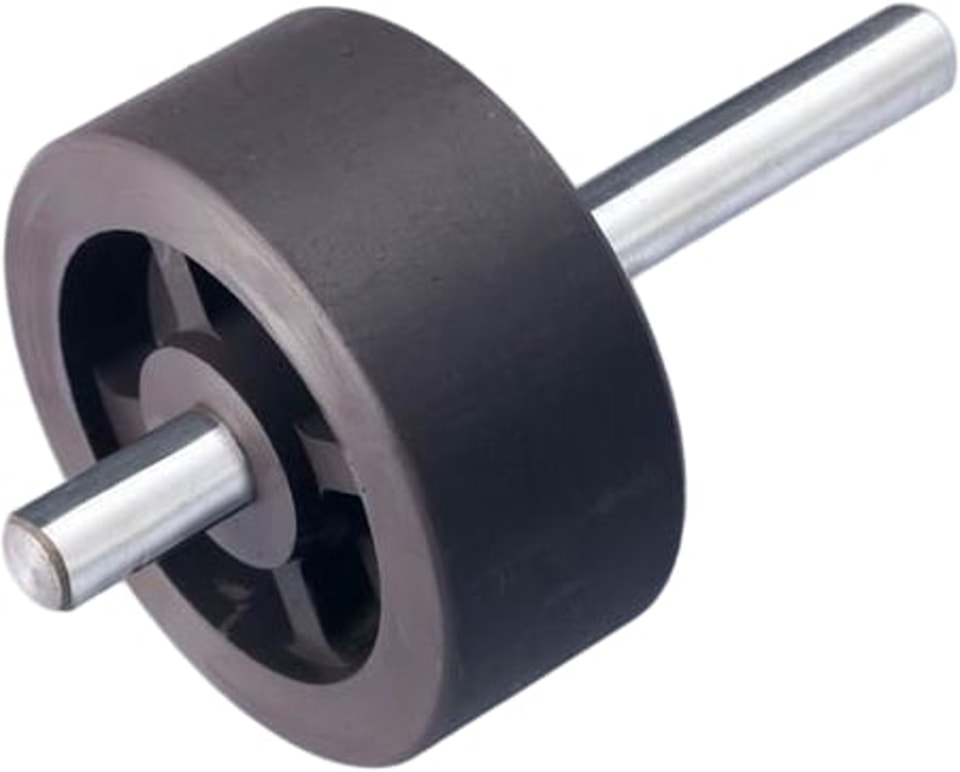

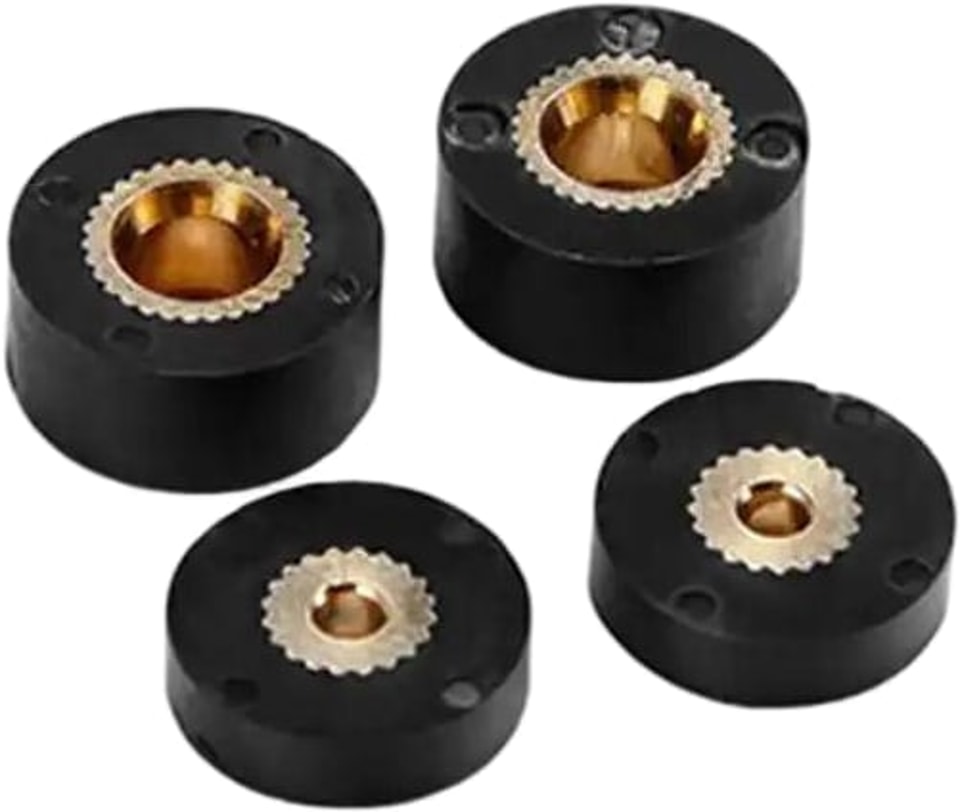

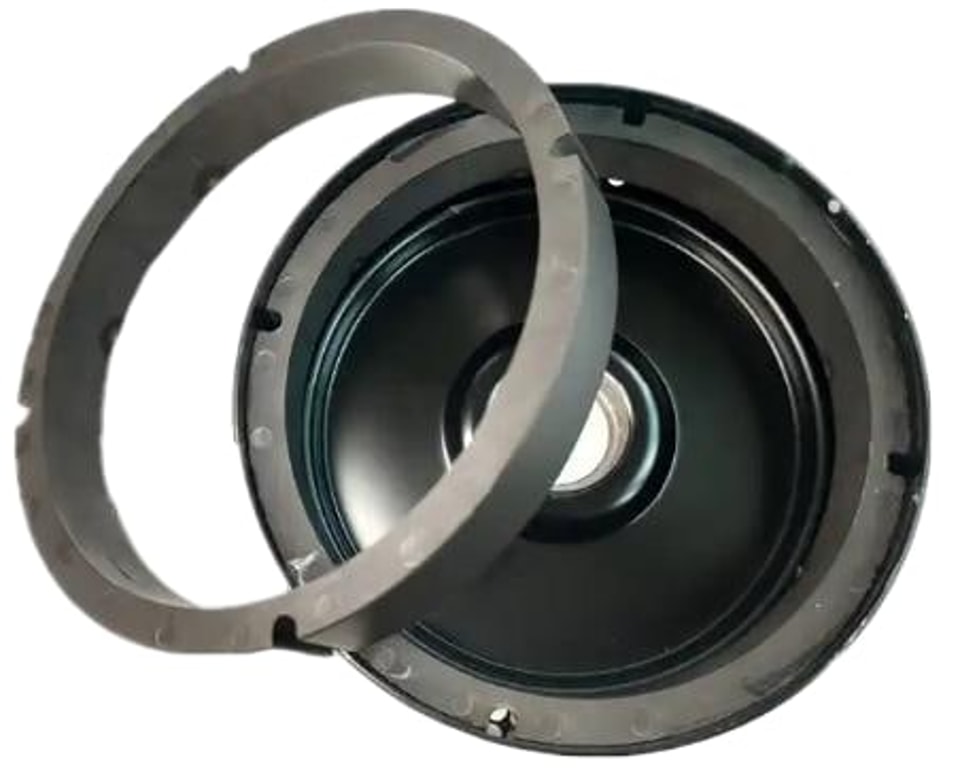

Applications: Injection-molded micro motor magnetic rings and rotors and copier and fax magnetic rollers, plus integrated bonded-magnet parts for precision sensors, automotive electronics, office automation equipment and small appliances.
